Motorola MicroNoc
The
three-month contract that lasted five years!

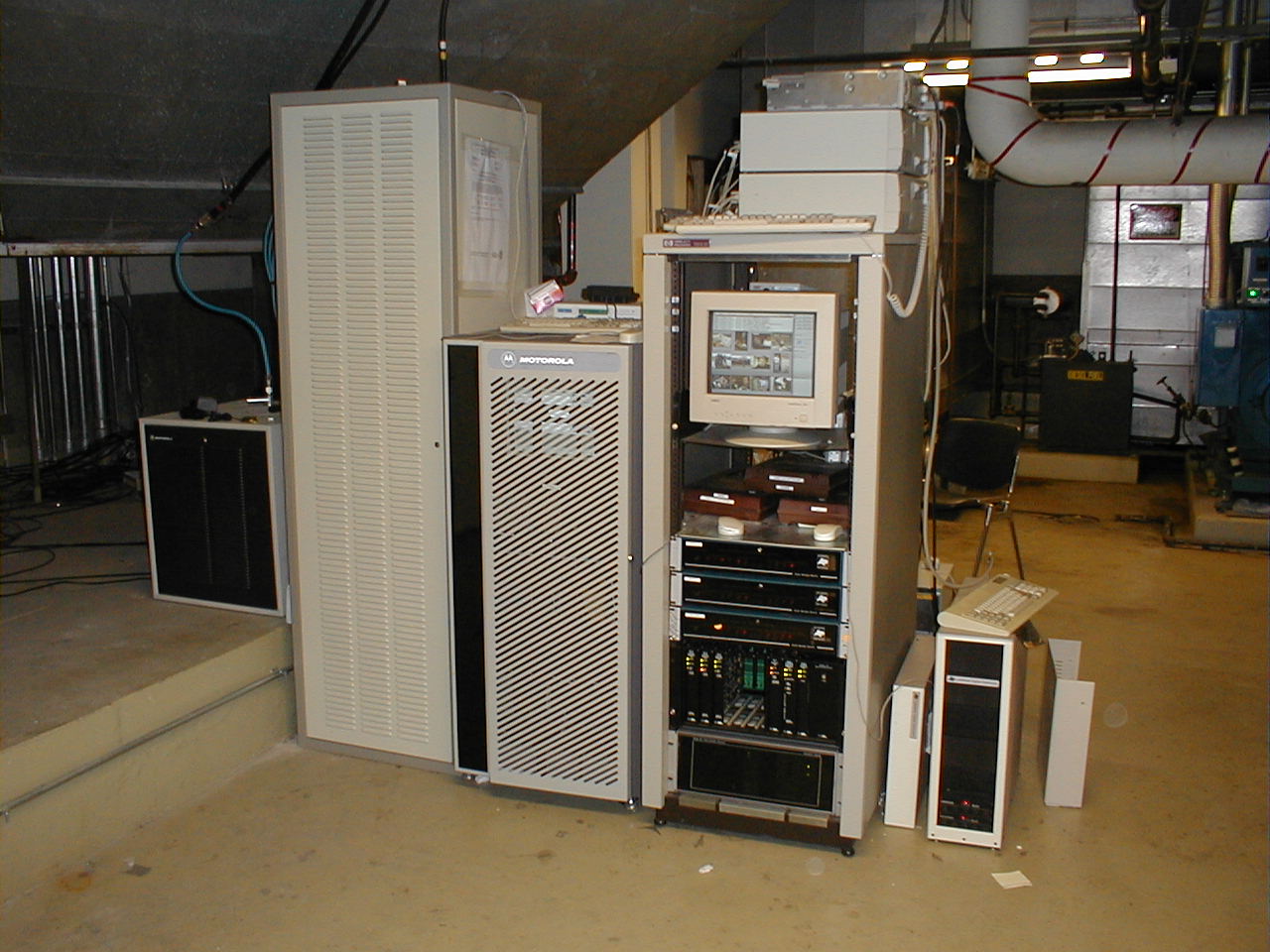

The
MicroNoc installed behind the scenes at MIT. Thanks for the photo Pascal!
From
Left to Right: Nucleus one-way transmitter, NWN 1000 watt two-way paging transmitter,
MicroNoc and two-way receiver, Wire Service news feed
The
MicroNoc (Network Operation Computer) is a transmitter and receiver control
system for Motorola REFLEX two-way paging demonstration, testing and
development. The MicroNoc has a modular design allowing it to interface to
multiple protocols, either over the Internet or industry standard paging
networks. Given an Internet connection the system could provide a wireless
two-way e-mail paging system with web access and news in about an hour, instead
of up to several days for a normal full installation. The transmitter section
could be configured from 50 milliwatts to 1000 watts, allowing for coverage of
a room or a city.

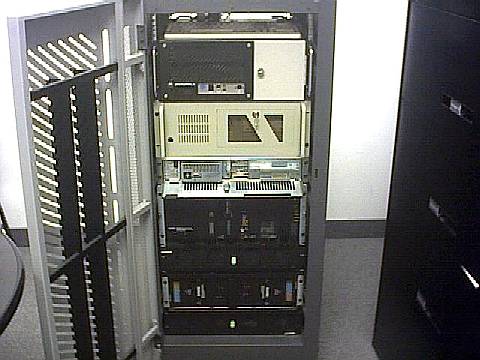

The MicroNoc at Daxtron Labs. From Top to Bottom: NOC
Computer, Internet interface computer, Receiver (bright silver), Transmitter,
two 125 watt 900 Mhz amps.
The
MicroNoc has been used for:
- Product
trials at Atlanta Gymnastics Trials in 1996
- The MIT
Canard project
- Motorola
internal development
- Customer
trials in Latin America: Argentina, Brazil, Columbia, Chile and Mexico
- Live
demonstrations at trade shows and conferences: Brazil, Denmark, Greece,
Hong Kong, UK, USA
Emergency Documents on the System
